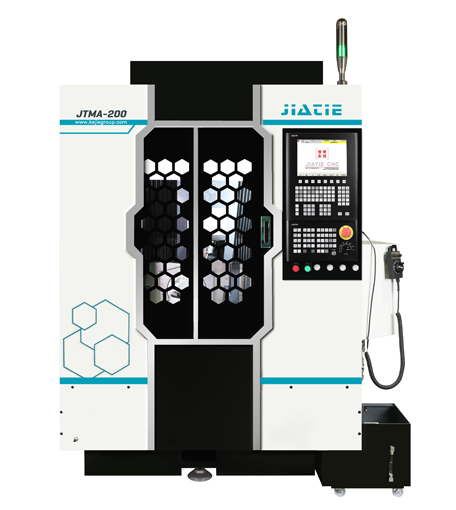

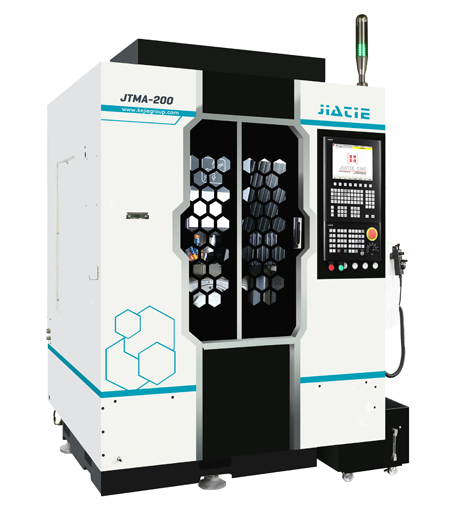

JTMA-200 High Speed Five-axis Machining Center
FeaturesParameters
Features
- Dynamic beam gantry structure for better precision retainability
- The moving parts are completely isolated from the machining area for easy machine cleaning
- Favorable man-machine interaction design ensures the comfort and convenience for users
For Material
Aluminum alloy, copper
Applied Range
Complex small components, electronic products
Standard Accessories
- JIATIE high speed CNC controller
- High speed spindle
- AC servo motor
- High precision ball screw and guide rail
- 5-axis rotary table
- Tool changer
- Hand Wheel
- Spindle cooling system
Optional Accessories
- Voltage stabilizer
- Oil mist collector
- Probe
Item | Parameter |
Working area X/Y/Z | 450/220/230mm |
| B/C axis | -20℃~ ±120° / Rotation 360° |
| Work table size | Φ140mm |
| Max load of table | 25kg |
| Max workpiece size | Φ200 x180mm; |
Spindle power Max spindle speed | 6.0kw/32000rpm |
| Rapid traverse rate | 15m/min |
| Cutting feed rate | 10m/min |
Positioning accuracy | 0.008mm |
| Repeatability | 0.005mm
|
| Weight | 3500kg
|
Machine dimension | 1500×1570×2150mm |
Power supply | 3-PH AC380V ±5% 50Hz |
