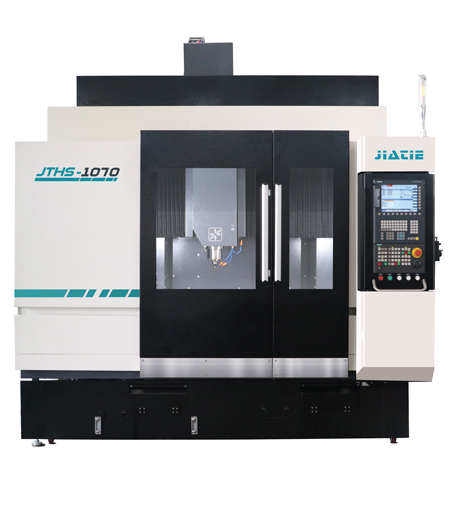

JTHS-1070 High Speed Machine

Download

FeaturesParameters

Features

- Stable high-speed milling performance

- Suitable for mold and hard material machining, good performance

- Favorable man-machine interface, easy operation

For Material

Carbon steel, alloy steel, high temperature alloy, aluminum alloy, copper

Applied Range

Demanding metal machining like mold, parts, etc

Standard Accessories

- High speed CNC controller

- High speed spindle

- AC servo motor

- Precision ball screw and guide rail

- Tool setting sensor

- Hand Wheel

- Spindle cooling system

Optional Accessorie

- 4^th axis

- Voltage stabilizer

- Oil mist collector

- Automatic chip remover

- Automatic tool changer

- Probe

Item	Parameter
Working area X/Y/Z	1000/700/500mm
Work table size	1100×700 mm
Max load of table	800kg
Spindle power Max spindle speed	13.0kw/19000rpm or 18.5kw/20000rpm or 20.0kw/20000rpm
Rapid traverse rate	30m/min
Cutting feed rate	20m/min
Positioning accuracy	0.008mm
Repeatability	0.004mm
Weight	9000kg
Machine dimension	3300×2700×3200mm
Power Supply	3PH-AC 380V ±5% 50Hz
