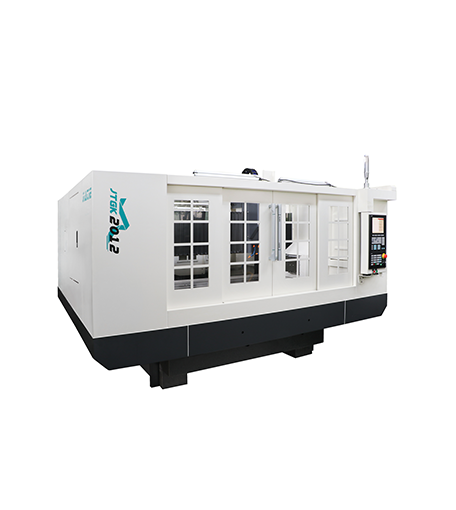

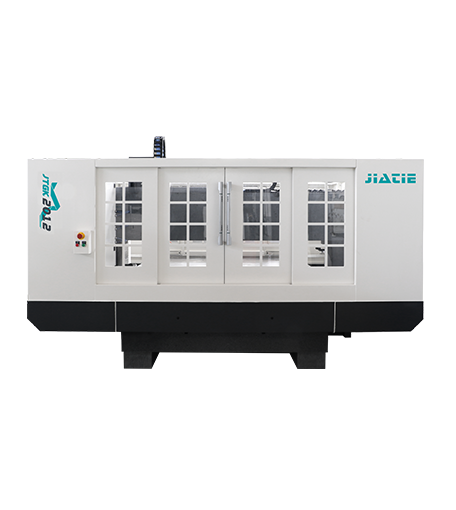

JTGK-2012

Download

FeaturesParameters



Feature：

- Higher cost-performance for massive machine, ensures machining surface quality and long-travel machining efficiency

- High universality protection design, available for multiple material machining of glass, acrylic, aluminum, etc

- Moving part reaches the most suitable weight by FEM analysis, improves feed speed and stability

Machining material：

glass, acrylic, copper, aluminum, etc

Application area：

the large-size machining demand of plate material, aviation and aerospace, automotive component, industrial equipment component, etc

Item	Parameter
X/Y/Z axis travel	2000/1200/230 mm
Worktable dimension	2000×1200 mm
Maximum workpiece height	320mm
Maximum workload	300kg
Machine net dimension	3220×2830×2280mm
Machine net weight	8000kg
